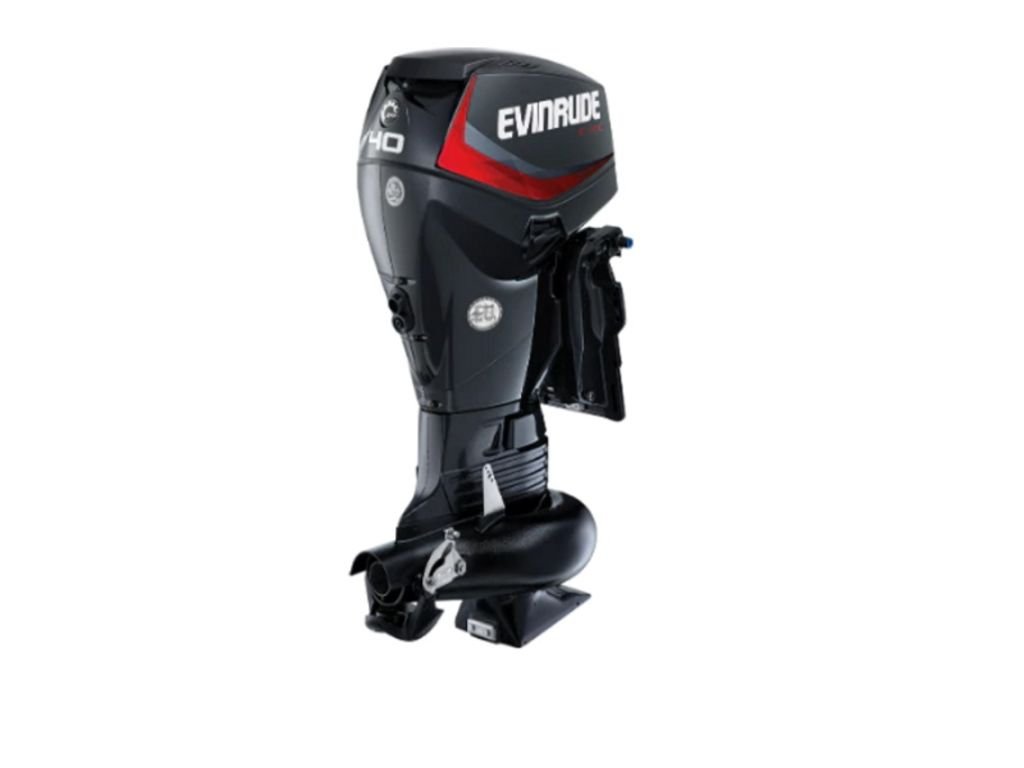

Evinrude 40HP Outboard Motor

Evinrude 40HP Outboard Motor Tackle new waters with Evinrude’s Jet drive outboard series, available in 40 HP, 60 HP, and 105 HP motors.

Thrust Control Gate

• The simple technology of the two-position lift gate gives you forward and reverse capabilities without sacrificing durability.

Power For The Skinniest Water

• A combination of the unmatched direct-injection torque and best-in-class power-to-weight ratio of the E-TEC Jet Series provides excellent shallow-water performance, unprecedented maneuverability and quiet operation. This outboard series goes where no propeller can go.

Engine

• Engine Type Inline 2-Cylinder E-TEC D.I.
• Bore 3.62 in (92 mm)
• Stroke 2.60 in (66 mm)
• Displacement 53 Cu in (864 cc)
• Throttle 5500-6000 RPM
• Gear Ratio (Primary) 1:1
• Steering Remote, Remote (Tiller Accessory)

Electric

• Starter Electric
• Alternator 81 Amps Total/25 Net

Fuel System

• Fuel System E-TEC Direct Injection with stratified low RPM combustion mode

Dimensions

• Length Shaft: 20 in (508 mm)

Weights

• Weight 247 lbs (112 kg)

Key Features

• Features Controls: Mechanical, Trim Method: Power Trim and Tilt
