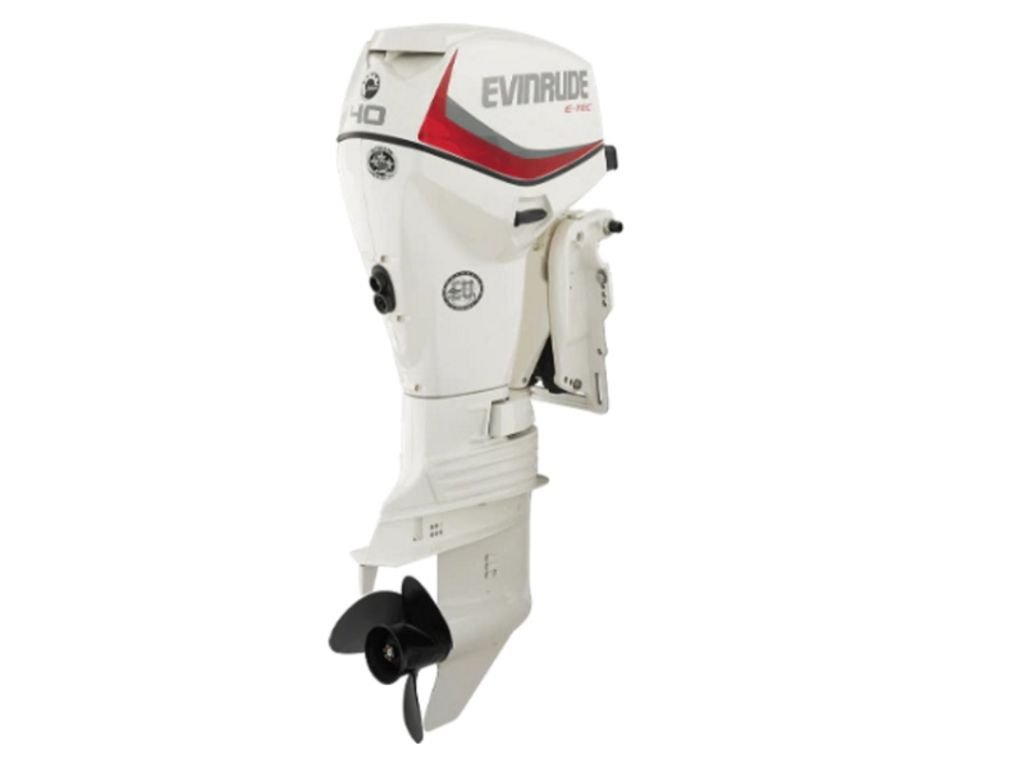

Evinrude E40DPGL E-TEC Outboard Motor

The Evinrude E40DPGL E-TEC H.O. series are performance engines to the max.

High Output Series

• The Evinrude E-TEC H.O. series are performance engines to the max. Each engine is tuned for extra power and speed. If you like pushing limits in horsepower, speed and torque, then consider our High Output Series.

Auto-storage

• The auto winterization feature fogs the engines itself in minutes, with no trip to the dealer. An Evinrude E-TEC engine does not require belts, camshafts or exhaust valves, which means there are fewer parts to wear down or malfunction than a four–stroke outboard. Extend the life of your outboard and your boating season

More Miles Per Hour

• Get even more extra miles per hour with the Straight Leading Edge gearcase. The Evinrude SLE gearcase features high-efficiency water pickups and a weed-slicing shape up front, for a cooler-running engine and ultimate durability and reliability in the long run.

Engine

Engine Type Inline 2-Cylinder E-TEC D.I.

Specifications

• Bore 3.62 in (92 mm)
• Stroke 2.60 in (66 mm)
• Displacement 53 Cu in (864 cc)
• Throttle 5500-6000 RPM
• Gear Ratio (Primary) 2.9:1
• Steering Remote (Tiller acc.)

Electric

Starter Electric

Alternator 81 Amps Total / 25 Net Dedicated

Fuel System

Fuel System E-TEC Direct Injection with stratified low RPM combustion mode

Dimensions

Length Shaft: 20 in (508 mm)

Weights

Weight 240 lbs (109 kg)

Key Features

Features Controls: Mechanical, Trim Method: Power Trim & Tilt
