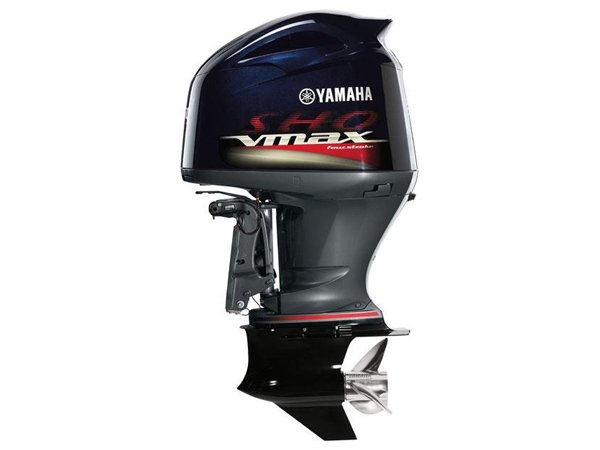

2017 Yamaha VF225 LA VMAX SHO Outboard Motor

For those ready for a whole new game

For years, bass anglers championed the two stroke, sacrificing fuel economy and power for performance. That is, until Yamaha unleashed the world’s first 4.2L Super High Output four stroke for bass boats. The four stroke V MAX SHO® offers all the advantages of a two stroke in a clean burning, fuel efficient four stroke. It’s a level of performance that pro anglers have always wanted on the tournament circuit. And it’s officially put two strokes on notice.

Key Features

• Super High Output 60° V6 Design
• Mechanically Controlled Four Stroke V6 Outboard
• Plasma-Fused Sleeveless Cylinders
• Variable Comshaft Timing
• Long Track Induction System
• Electronic Multi-Point Precision Fuel Injection
• Ignition Knock Sensor
• 4 Large Radius Valves Per Cylinder
• High Intake Valve Lift
• Double Overhead Camshafts
• In-Bank™ Exhaust
• Exhaust Pressure Reduction System
• Compact, Lightweight Design

Specifications

• Year 2017
• Manufacturer Yamaha Marine
• Model Name VF225
• Trim Name LA
• Generic Type (Primary) Four Stroke
• Engine
• Engine Type V6 (60º)
• Engine Power 225 HP @ 5500 RPM
• Alternator (Output): 50 Amp (46 AMP @ 1000rpm)
• Displacement 4.2L (254 ci)
• Gear Ratio (Primary) (21:12) 1.75:1
• Lubrication Wet sump
• Fuel Type Induction: DOHC Fuel Injection VCT
• Ignition System: TCI Micro Computer
• Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)
• Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
• Fuel Type (Recommended Filtration): Yamaha 10 Micron Fuel/Water Separating Filter
• Capacities
• Oil capacity 6.7L (7.1 qt) with filter
• Spark Plug
• Spark Plug LFR6A-11-00-000
• Range
• Note Full Throttle RPM Range: 5000-6000 rpm
• Dimensions
• Length Shaft: L= 20″
• Bore 3.78 in. (96 mm)
• Stroke 3.78 in. (96 mm)
• Weights
• Dry Weight 505 lb (229 kg) VF250LA
• Features
• Exhaust Through Propeller
• Features Degree of Tilt: 66°, Degree of Trim: -4° through +16°
• Note Ethanol Blend Limit: 10% Maximum
• Starter Electric w/PTT
• Note Gear Shift: Forward, Neutral, Reverse
• Features C.A.R.B. Rating: 3 Star
• Cooling Water/Thermostatic Control
• Steering Angle Maximun: 35° from center, either direction
• Intake Design Single Throttle Valve
• Note Mounting Centers: 28.6″
• Compression Ratio 10.3:1
• Warranty
• Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
