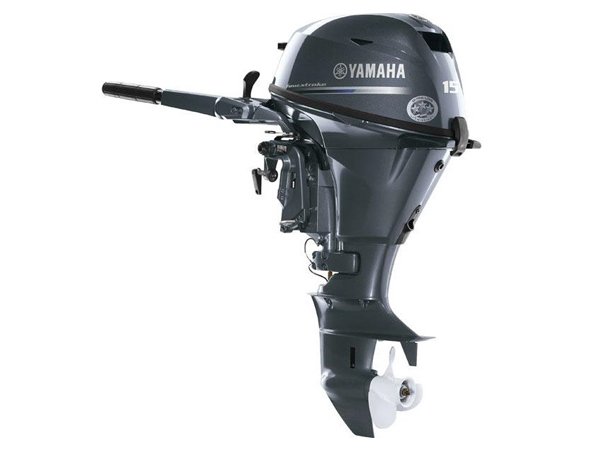

2017 Yamaha F15 SMHA Outboard Motor

broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up, or hopping to the cuddy on a tender.

Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.

Key Features

• SOHC
• Large Displacement Engine
• Streamlined Intake Manifold
• Large Volume Air Silencer
• Labyrinth Exhaust
• Water-Cooled Fuel Pump
• Acceleration Pump
• Long Span Mounting System
• Four Stroke Engine Design
• Year 2017
• Manufacturer Yamaha Marine
• Model Name F15
• Trim Name SMHA
• Generic Type (Primary) Four Stroke

Engine

• Engine Type 2 Cylinder
• Engine Power 15 hp @ 5500 rpm
• Alternator (Output): 10A **
• Displacement 22.1 ci (362 cc)
• Gear Ratio (Primary) (27:13) 2.08:1
• Lubrication Wet sump
• Fuel Type Induction: SOHC
• Ignition System: CDI Micro Computer
• Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
• Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)
• Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)
• Spark Plug
• Spark Plug DPR6EB-900-000
• Range
• Note Full Throttle RPM Range: 5000-6000
• Dimensions
• Length Shaft: S=15″
• Bore 2.48 in. (63 mm)
• Stroke 2.29 in. (58.1 mm)
• Weights
• Dry Weight F15SMHA = 50kg (111 lbs)
• Capacities
• Oil capacity 1.8L/1.6L w/without filter
• Features
• Compression Ratio 9.3:1
• Features Degree of Tilt: 67°-71°, Degree of Trim: 4 positions
• Exhaust Through Propeller
• Weight Spec: 2
• Note Ethanol Blend Limit: 10% Maximum
• Note Gear Shift: Forward, Neutral, Reverse
• Features C.A.R.B. Rating: 3 Star
• Steering Angle (Maximum): 45° from the center, in either direction
• Cooling Water/Thermostatic Control
• Note Mounting Centers: 28.6″
• Intake Design Carburetor
• Starter Manual or Electric
• Warranty
• Warranty 3 Year Limited Pleasure Boat – 1 Year Limited Commercial
