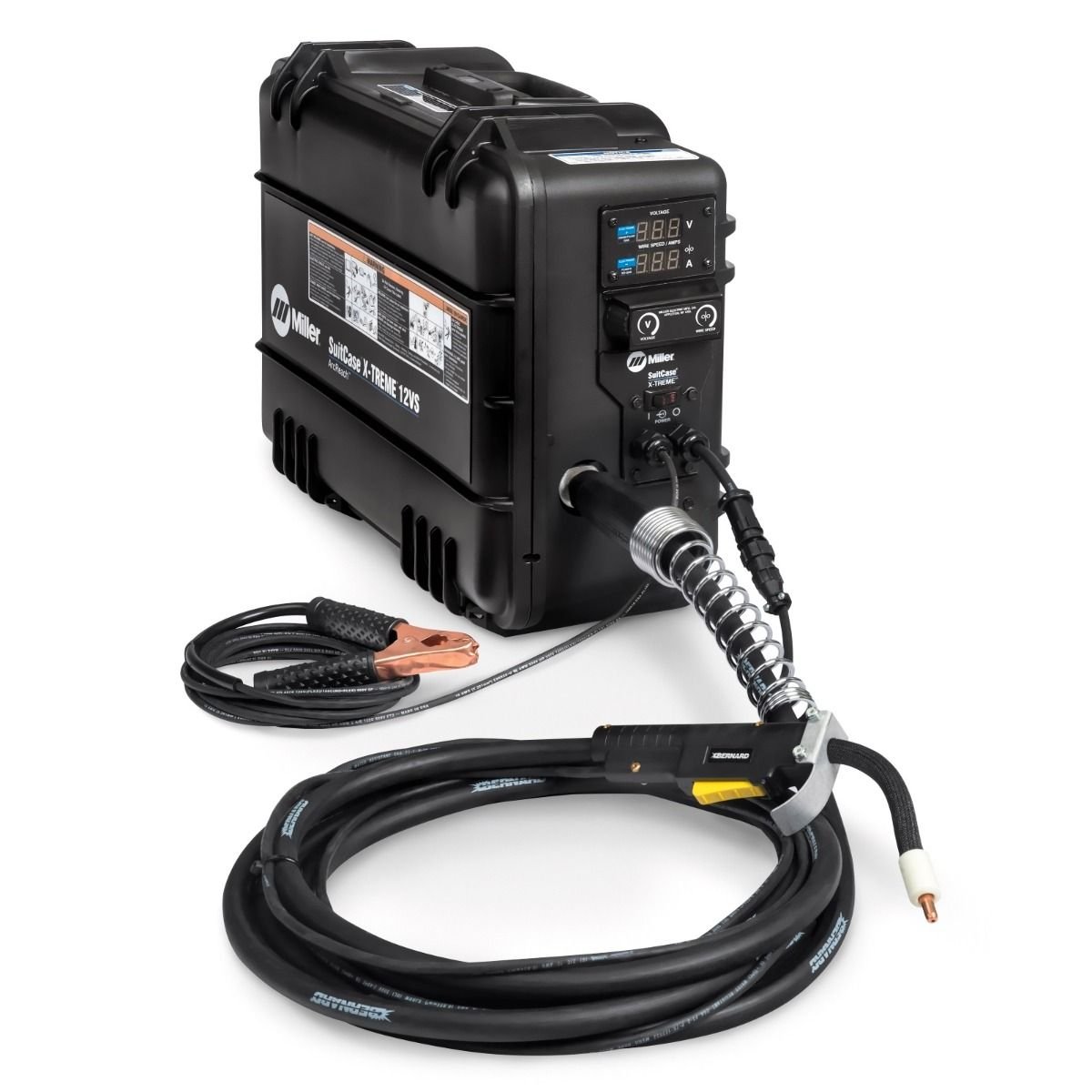

MILLER ARCREACH SUITCASE 12 W/FLUX CORED GUN (951731)
$2,017.42
Description
The Miller ArcReach Suitcase 12 feeder allows the operator to adjust the output voltage at the feeder, saving a trip back to the power supply – no extra control cable to purchase. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete benefits are only realized with the ArcReach system.
Suitcase X-TREME Features
- Electronic wire feed speed with control tachometer
- Digital meters with sunvision technology
- Front panel has trigger hold, wire jog, and gas purge
- Ability to change wire with feeder in upright position
- Dual schedule capable (dual schedule switch sold separately)
- Gun locking tab prevents gun from being pulled out prematurely
- Recessed gas inlet on rear of case
Specifications
- Input Power: 14-48 VDC operating range
- Wire Feed Speed: 50-780 ipm
- Duty Cycle: 60% @ 425A
- Wire Diameter Capacity:.023 –.052 Solid Wire, .030 – 5/64 Flux Cored
- Max Wire Diameter: 12″ or 45lb Spool
- Dims: 15.5″ H x 9″ W x 21″ D
- Weight: 35lbs
What’s Included
- ArcReach 12 feeder (12-Inch Spool Capacity)
- 15′ Bernard Flux-Cored Gun
- Centerfire contact tips: (3).045, (2).052
- .068/.072-5/64 V-Knurled drive roll kit (Guides already installed on feeder)
More Information
| Brand | Miller |
|---|---|
| SKU | IMIL20180106 |
| MPN | MIL951731 |
| Mfgs MPN | 951731 |
| UPC | 715959657693 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Max Amperage Output | 425A |
| Phase | Single Phase |
| Manufacturer’s Warranty | Yes |
| Polarity | DC |
| Duty Cycle | 60% |
| Portability | 35lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
