ESAB FABRICATOR 141I MULTI PROCESS WELDING SYSTEM, TIG TORCH, AND FOOT CONTROL (W1003141)

The ESAB Fabricator 141i Multi Process Welding System (W1003141), TIG Torch (W4013802) and Foot Control (THA600285) contains everything you need to tackle all three processes and a foot control to boot! The Fabricator 141i continues the legacy that Thermal Arc has established in the industry. The ESAB Fabricator Series, with its leading technology has set a new standard for portable welding equipment delivering 3-in-1 MIG, TIG, and Stick capability from one integrated, portable system. Warranty: 3 Years Limited Warranty

Mig

• Infinite Voltage Control for precise voltage settings.
• Inductance Control for arc stability and spatter control.
• Tweco Fusion MIG Gun w/10 ft cable and industry standard #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4″ or 8″ Spool Capacity allows easy installation of wire spool sizes.
• Spool Gun ready.
• Adjustable Burnback Control.

Stick

• Adjustable Arc Force Control for optimum STICK electrode performance.
• Built in Hot Start for easy arc starting.

Tig

• Torch W4013802 to be able to TIG is included.
• Lift TIG Start: Provides TIG arc starting without use of high frequency.
• Downslope: Eliminates the crater that can form at the completion of a weld.

Other Features

• Digital Meters: Voltage and Amperage; Preview and Hold capability.
• Excellent Portability: Lightweight, less than 33 lbs includes shoulder strap.
• Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
• Trigger Control: 4T (Latch) eliminates operator fatigue.
• Remote Receptacle: Enables connection of remote control devices and Spool Gun.
• Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source.
• Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
• Ip23s: Suitable for outdoor use.
• Intelligent Fan Control: Operates when welding commences to cool components & reduce airborne contaminants pulled through the power source.

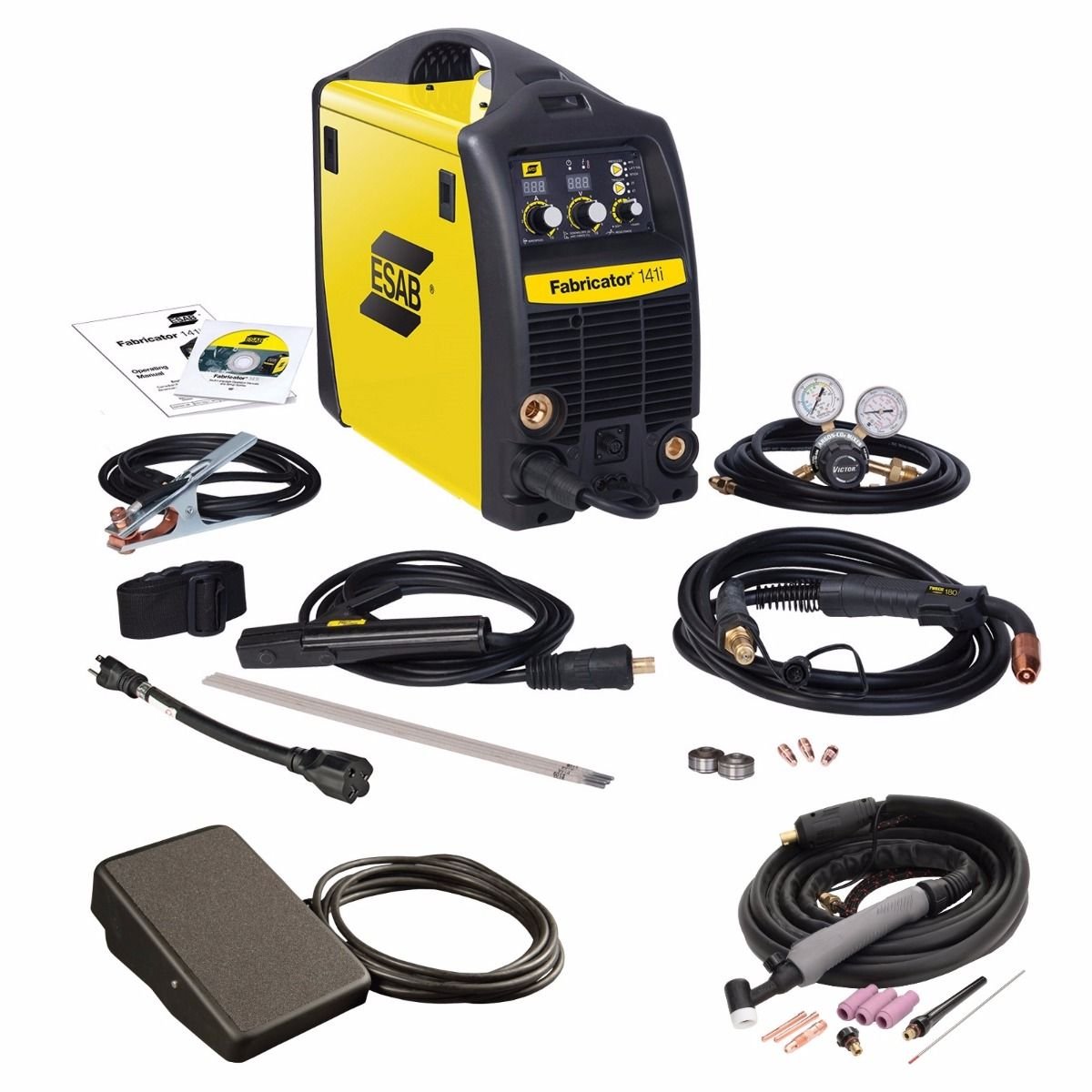

Comes Complete with

• Fabricator 141i Power Supply
• Thermal Arc TIG Torch W4013802
• Thermal Arc Foot Control THA600285
• 10 ft Tweco Fusion 140 Amp MIG Gun
• Victor Argon Regulator/Gauge and 12.5 ft (3.8 m) Hose
• Electrode Holder with 13 ft (4 m) Lead
• Ground Clamp with 10 ft (3 m) Lead
• 4 General Purpose Stick Electrodes (E6013)
• Operator’s Manual & CD
• 10 ft (3 m) Power Cord and NEMA 5-20P 115V AC Plug
• Power adapter – 115V, 20A to 15A
• Shoulder Strap

Bonus Contact Tips (1 each)

• .023 (0.6 mm)
• .030 (0.8 mm) Installed
• .035 (0.9 mm)

Drive Rolls

• .023″ /.030″ (0.6 mm / 0.8 mm) V Groove (Installed)
• .030″ /.035″ (0.8 mm / 0.9 mm) for Flux Cored Wire
