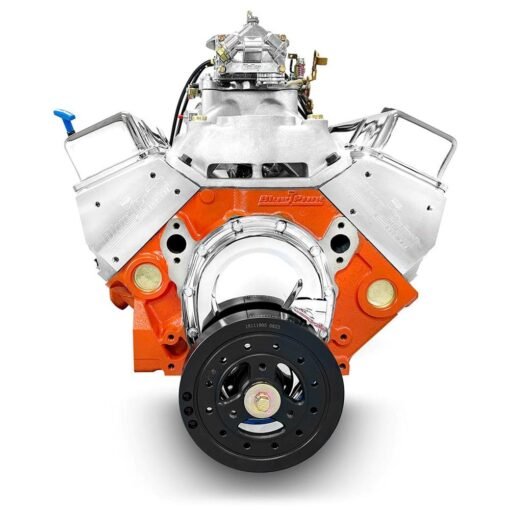

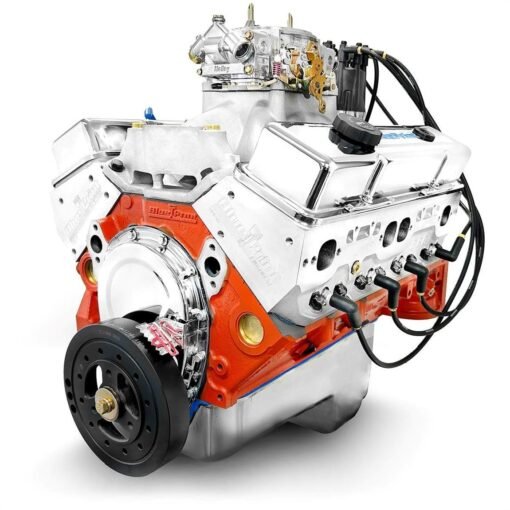

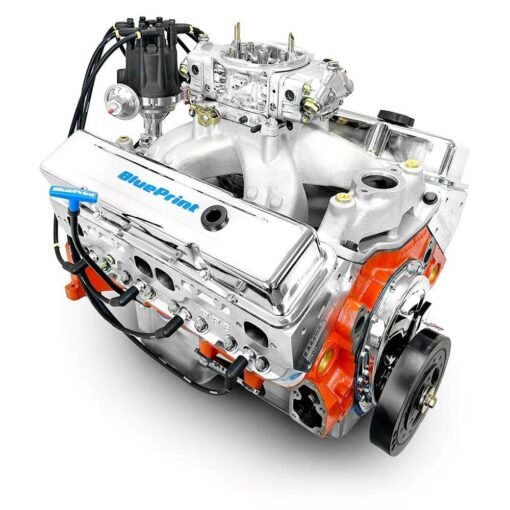

BluePrint PS4272CTC1 SBC 427 Pro Carb Base Dressed Engine 540HP

Horsepower / Torque: 540 Horsepower / 535 ft. lbs. Torque Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Forged Crank Forged Pistons Block: High Strength Cast Iron Block Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125″ Bore Rotating Assembly: Forged Crankshaft 4.000″ Stroke Forged 6.000″ Connecting Rods Forged Pistons Internally Balanced Front and Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 64cc Chamber 2.08″ Intake / 1.60″ Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .577 Intake / .577 Exhaust Lift 240 Intake / 248 Exhaust Duration @.050-112 Degree Lobe Separation Also Includes: Holley 850cfm Double Pumper Carburetor (Manual Choke) – BPP04781S Pro Series Ready Run Distributor – BPP3503BK Intake Manifold – BPP427454INT Valve Covers – BPP9518 Spark Plugs and Wires Harmonic Balancer Timing Cover Oil Pan

Highlights

• GM Small Block Compatible 427 c.i. Pro Series Engine
• 540 Horsepower
• Base Dressed
• Carbureted

Specifications

• Engine Displacement: 427 cu. in.
• Compression Ratio: 9.2:1
• Camshaft Type: Hydraulic Roller
• Cylinder Head Material: Aluminum
• Camshaft Duration (.050 in): 239° intake / 255° exhaust
• Camshaft Lift (in): .624 intake / .624 exhaust
• Bore x Stroke (in): 4.060″ bored to 4.069″ x 4.125″
• Carburetor Included: Yes
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Warranty: 41 month / 50,000 mile
• Valve Covers Included: Yes
• Engine Balance: Internal/External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• MFG. Part #: PS4272CTC1
• Sold in Quantity: Each
• Brand: BluePrint Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
