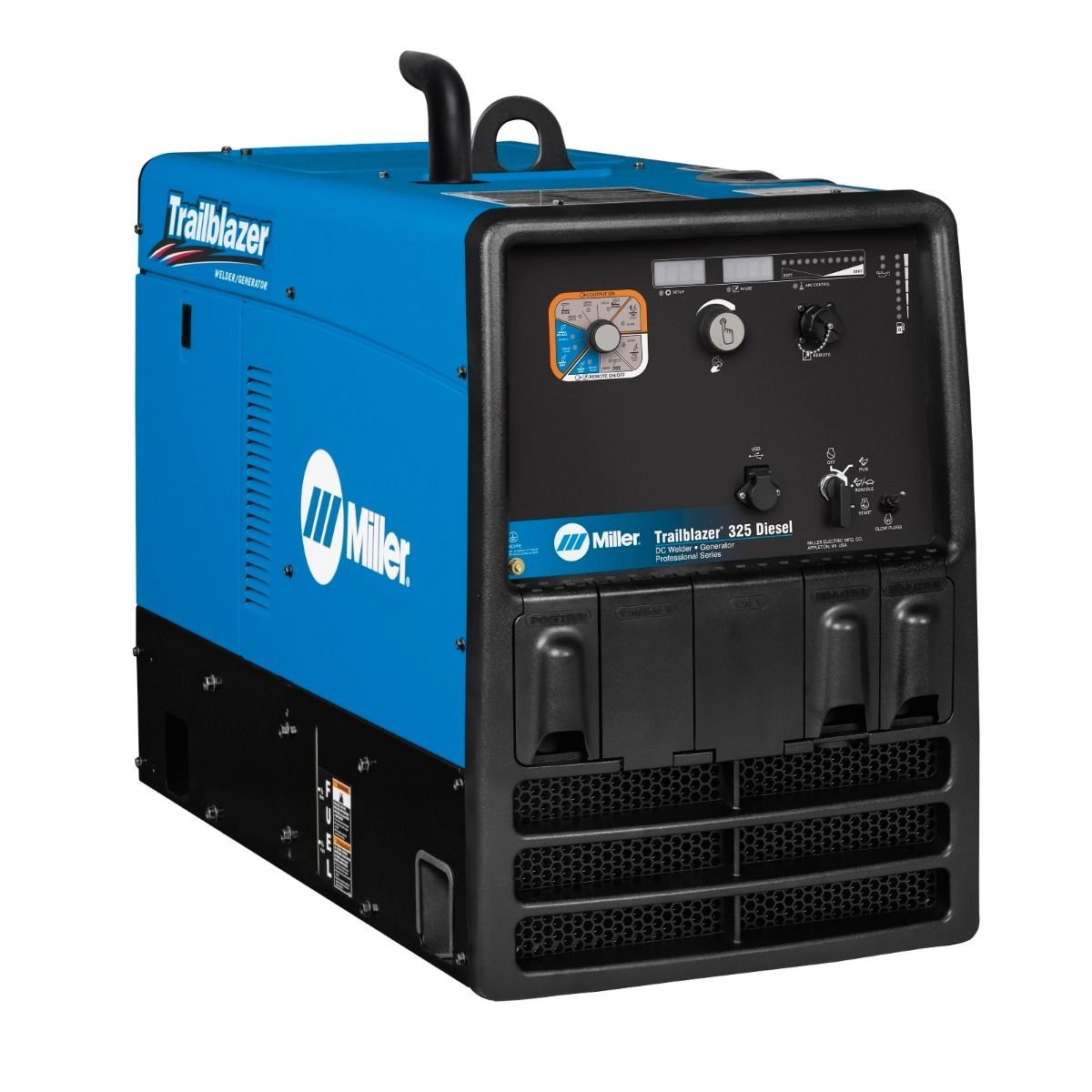

325 KUBOTA DIESEL W/EXCEL POWER

The Miller 907799002 Trailblazer 325 KUBOTA DIESEL W/EXCEL POWER engine drive delivers unbeatable arc performance with 325 amps and 12,000-watt peak output. The Trailblazers offer an exclusive “Auto-Speed” technology whereby the generator responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary.

Excel Power Benefits

• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate site tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models

Key Features

• Auto-Speed Technology – Matches Engine Speed to Weld Load
• Excel Power (Included) – Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• Arc Reach Technology (Optional) – Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable – Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger – 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power

Specifications

• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick, 10-35V MIG, 10-325A DC TIG
• Generator Output: 12,000W Peak, 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load, 81.5 dB @ 325A Load
• Dimensions: 28″ H x 20″ W x 45.4″ L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
