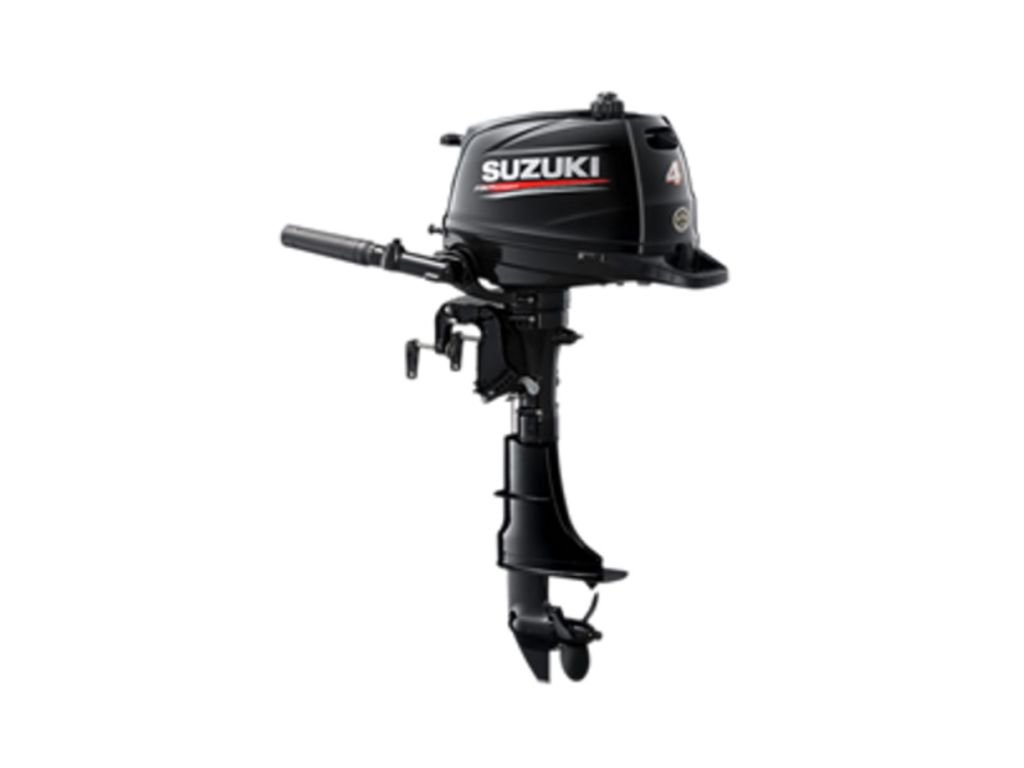

2022 Suzuki DF4A S Outboard Motor

2022 Suzuki DF4A S Outboard Motor Performance and Efficiency to portable outboards. Compact and lightweight, the DF4 is easy to transport and delivers surprising low- and mid-range torque for quick acceleration.

Features may include

• Over-Rev. Limiter
• Digital CDI
• Fresh Water Flushing System
• Shallow Water Drive
• Suzuki Anti-Corrosion System

Engine

• Engine Type OHV 2-Valve
• Engine Power Max Output: 4 HP
• Displacement Piston: 8.4″ (138 cc)
• Rated Engine Speed Operating Range: 4000 – 5000 RPM
• Bore 2.44″ (62 mm)
• Stroke 1.81″ (46 mm)
• Gear Ratio (Primary) 1.92:1
• Cylinder Liners 1
• Ignition System: Digital CDI
• Steering Tiller
• Starter System: Manual

Electric

• Alternator 12V 6A

Fuel System

• Fuel System Delivery: Carburetor

Dimensions

• Transom Height Recommended: 15″

Capacities

• Oil capacity Pan:.74 qts (.7 lots)

Weights

• Weight Electric: 55 lbs

Key Features

• Features Choke: Manual, Trim Position: 5 Tilt Pin Positions, Standard Propeller: 3 x 7.5 x 6.5, Propeller Selection: 6 – 7
