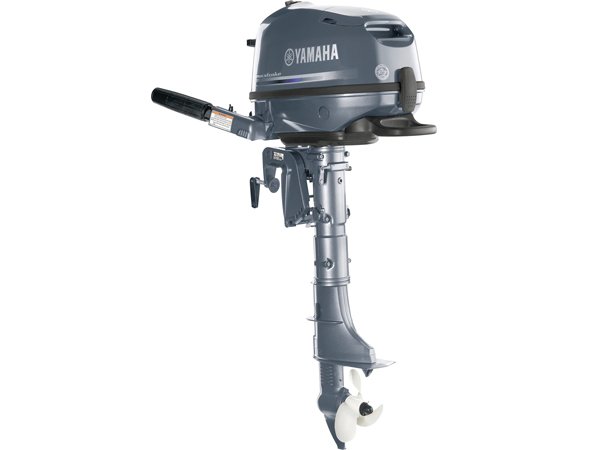

2020 Yamaha 6 HP F6SMHA Outboard Motor

Specifications

• Year 2020
• Manufacturer Yamaha Marine
• Model Name F6SMHA
• Trim Name Base
• Generic Type (Primary) Portable
• Engine Type 1 cyl
• Engine Power 6 hp at 5000 rpm
• Starter System: Manual
• Displacement 139 cc
• Bore 2.44 in (62 mm)
• Stroke 1.81 in (46 mm)
• Compression Ratio 8.9:1
• Throttle Full RPM Range: 4500 ~ 5500
• Steering Angle (maximum): 90° from center, either direction
• Exhaust Above Propeller
• Ignition CDI
• Oil Type Recommended: Yamalube® 4M
• Lubrication Wet Sump
• Cooling Recommended: Thermostatic Control
• Gear Ratio (Primary) 2.08:1
• Gear Shifter Forward, Neutral, Reverse
• Spark Plug CR6HSB
• Alternator Output, Maximum 6 Amp, at W.O.T.: 6 Amp
• Fuel System Induction: Carb, Ethanol Blend Limit: 10% Maximum
• Fuel Type Recommended: Octane 87
• Dimensions Degree of Tilt: 69°, Degree of Trim: -4° through +16°
• Length Shaft: 15″ – 20″
• Oil capacity 0.6 L
• Dry Weight 15″ shaft: 59 lbs (27 kg), 20″ shaft: 61 lbs (28 kg)
• Features Intake: 2, C.A.R.B. Rating: 3-Star
• Warranty Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
