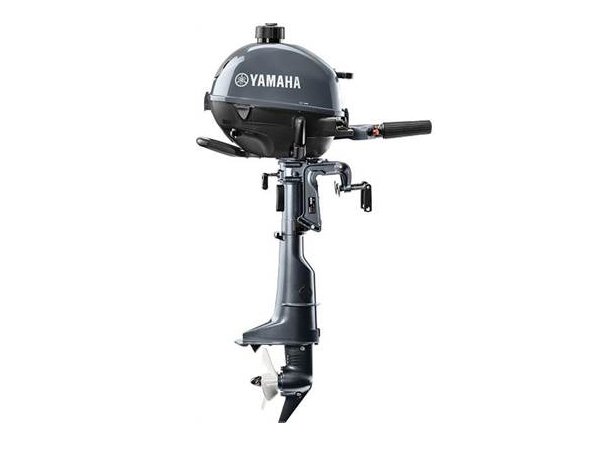

2020 Yamaha 2.5 HP F2.5LMHB Outboard Motor

Specifications

• NEW YAMAHA 2.5 LMHB FOUR STROKE MOTOR
• Engine Type One Cylinder
• Displacement 4.4 ci (72 cc)
• Bore x Stroke 54 x 31.5mm (2.13 x 1.24 in)
• Prop Shaft Horsepower 2.5 hp @ 5500 rpm
• Compression Ratio 8.8:1
• Fuel Induction Overhead Valve
• Exhaust Above Propeller
• Intake Carburetor
• Ignition TCI
• Spark Plug CR6HSB-000-000

Alternator Output N.A.

Specifications

• Starting System Manual
• Engine Oil Capacity 0.35L(0.37qt)
• Full Throttle RPM Range 5250 ~ 5750 rpm
• Cooling Water/Thermostatic Control
• Recommended Engine Oil Yamalube® 4M (See Owner’s Manual)
• Recommended Fuel Regular Unleaded (Minimum Pump Octane 87)
• Recommended Fuel Filtration Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)
• Gear Ratio 2.01:1
• Gear Shift Forward, Neutral
• Shaft Length S=15″, L=20″
• Degree of Tilt 79°
• Degree of Trim 4 positions
• C.A.R.B. Rating 3-Star
• Dry Weight F2.5SMHB = 17kg (37 lbs), F2.5LMHB = 18kg (40 lbs)
• Steering Angle (maximum) 360° from center, either direction
• Warranty 3 Year Limited Pleasure Boat – 1 Year Limited Commercial
• Spec Weight 7
