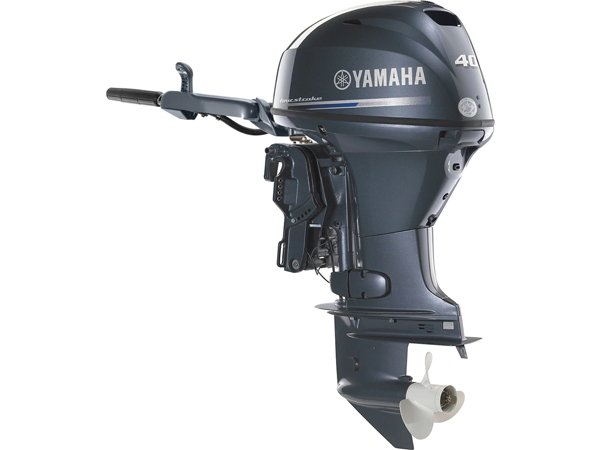

2019 Yamaha 40 HP F40LEHA Outboard Motor
$3,030.29
Description
Convenience & Control
- Control and Comfort: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.
- Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
- Power Trim and Tilt: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.
Model Specific Features
- Our 747-cc 40-hp midrange provides powerful performance in a compact package that’s available in both propeller- and jet-pump-driven models. With its single throttle valve, long-track intake manifold and electronic control module, it delivers easy starts, fast acceleration and excellent top-end speed.
- Available for mechanical or tiller-handle control
- Only 214 pounds
- Available in a 20” shaft
- Powerful 17-amp alternator
- Optional Variable Trolling RPM Switch (VTS®) via our Multi-Function Tiller Handle, Command Link® tachometer or new helm-mounted remote VTS switch
Specifications
| Engine Type | 3 cyl |
|---|---|
| Displacement | 747cc |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 40hp at 5500rpm |
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Alternator Output at W.O.T. | 17 Amp |
| Compression Ratio | 9.4:1 |
| Fuel Induction System | EFI |
| Weight* | 97 kg (214 lbs) |
| Recommended Fuel | Octane 87 |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 6 |
| Ignition | CDI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Alternator Output | 17 Amp |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 1.7L/1.5L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ |
| Degree of Tilt | 20° |
| Degree of Trim | -3° through +20° |
| Dry Weight | 97 kg (214 lbs) |
| Mounting Centers | N/A |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
