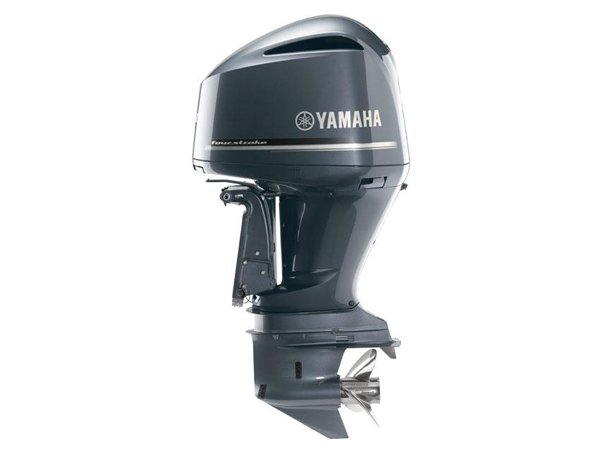

2017 Yamaha F225 4.2L Offshore Digital Outboard Motor

FOR THOSE WHO LIKE THEIR V6 LIGHTER, FASTER AND FIERCER.

Who says you have to put on the pounds to add more horses? Meet Yamaha’s Next Generation of V6 4.2L Offshore outboards. These award winners are packed with Yamaha’s legendary reliability, which is why so many anglers won’t trust anything else a hundred miles out.

Power/Performance

• Mechanically Remote-Controlled Four Stroke V6 Outboard
• Narrow 60° 3.3L Block Design
• Variable Camshaft Timing
• Long Track Induction System
• Precision Multi-Point Fuel Injection
• 6 Independent Fuel Injectors
• 4 Large Radius Valves Per Cylinder
• High Intake Valve Lift
• Double Overhead Camshafts
• In-Bank™ Exhaust
• Exhaust Pressure Reduction System

Reliability/Durability

• TCI Microcomputer
• Electronic Single Throttle Valve (65mm)
• Direct Drive System
• Sacrificial Anodes
• Forged Pistons
• Water Cooled Rectifier/Regulator
• Water Separator
• Direct Ignition
• YDC-30 Aluminum Alloy
• 5-Step Anti-Corrosion Paint Process
• Top Mounted Electrical
• High Output Alternator
• SST Drive, Prop, Shift Shafts
• SST Steering Tube

Convenience/Control

• Command Link® System
• Power Trim & Tilt
• Freshwater Flush
• Counter Rotation “LF” Model
• Yamaha Diagnostic System
• Multi-Charge Monitoring System
• Single Belt Drive System

Specifications

• Year 2017
• Manufacturer Yamaha Marine
• Model Name F225 4.2L Offshore
• Trim Name Digital
• Generic Type (Primary) Four Stroke
• Engine
• Engine Type V6 (60º)
• Engine Power 225hp at 5500 rpm (F/LF225)
• Alternator (Output): 70 Amp
• Displacement 4.2L (254 ci)
• Gear Ratio (Primary) (21:12) 1.75:1
• Lubrication Wet sump
• Ignition System: TCI Micro Computer
• Fuel Injection System: DOHC Fuel Injection VCT
• Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
• Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
• Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)
• Capacities
• Oil capacity 6.3L/6.0L w/with filter
• Spark Plug
• Spark Plug LFR6A-11-00-000
• Range
• Note Full Throttle RPM Range: 5000 – 6000
• Dimensions
• Length Shaft: X = 25″ U = 30″
• Bore 3.78 in. (96 mm)
• Stroke 3.78 in. (96mm)
• Weights
• Dry Weight 25″ shaft / 255 kg (562 lbs)
• Features
• Starter Electric
• Note Ethanol Blend Limit: 10% Maximum
• Steering Angle Maximun: 32° from center, either direction
• Note Gear Shift: Forward, Neutral, Reverse
• Intake Design Single Throttle Valve
• Features C.A.R.B. Rating: 3 Star
• Cooling Water/Thermostatic Control
• Features Degree of Tilt: 67°, Degree of Trim: -3° through +16°
• Note Mounting Centers: 28.6″
• Exhaust Through Propeller
• Compression Ratio 10.3:1
• Warranty
• Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
